Leadframes

Innovative Solutions, Precision Products

Our Lead Frames and Parts

We produce multi impression fine tolerance lead frames for the Electronics market. Producing multiple tooling up to 32 impression gives us the ability to produce parts at a low unit price. We can offer pre plated, post or selective plating on these frames.

Dual In-Line Lead Frames

Also known as Dual In Line Pin as well as edge clip connectors. Typical applications include resistor networks, hybrid circuits and PCB terminations. DIL leadframes are available with pitches of 1.27mm to 2.54mm, and “F” and “G” outlines as detailed in the catalogue. Customised versions and special designs are also possible

Find out more

DIL 1 - Dual In-Line Lead Frames


Single In-Line Lead Frames

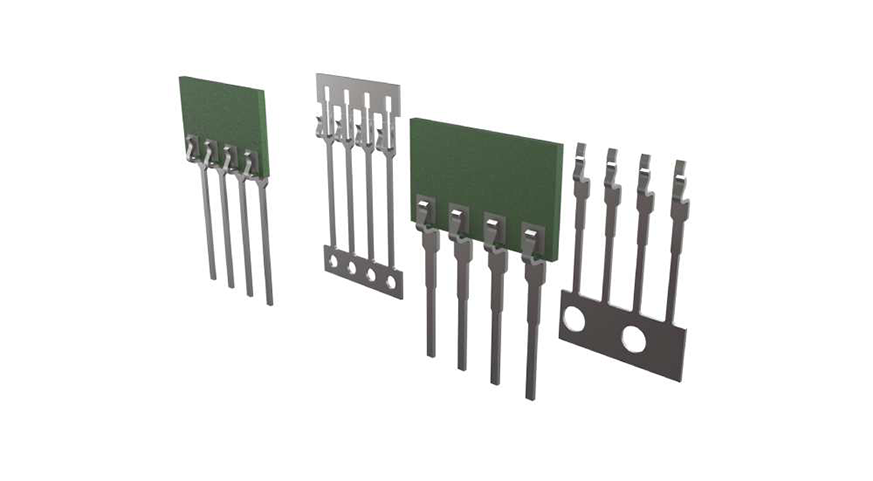

Also known as Single In Line Pin (SIP). Typical applications include resistor networks, hybrid circuits and PCB terminations. SIL leadframes are available with pitches of 1.27mm to 2.54mm as detailed in the catalogue. Customised versions and special designs are also possible.

Find out more

DIL 1 - Single In-Line Lead Frames


Surface Mount Lead Frames

Batten and Allen produce a range of surface mount leadframes, also known as edge clip connectors. Typical applications include resistor networks, hybrid circuits and PCB terminations. SML leadframes are available with various pitches and styles as detailed in the catalogue. Customised versions and special designs are also possible.

Find out more

DIL 1 - Surface Mount Lead Frames


Stacked Capacitor Lead Frames

New to market – a range of Lead Frame specifically designed for through hole and surface mount ceramic capacitors.

Find out more

Stacked Capacitor Lead Frames


Custom Lead Frames

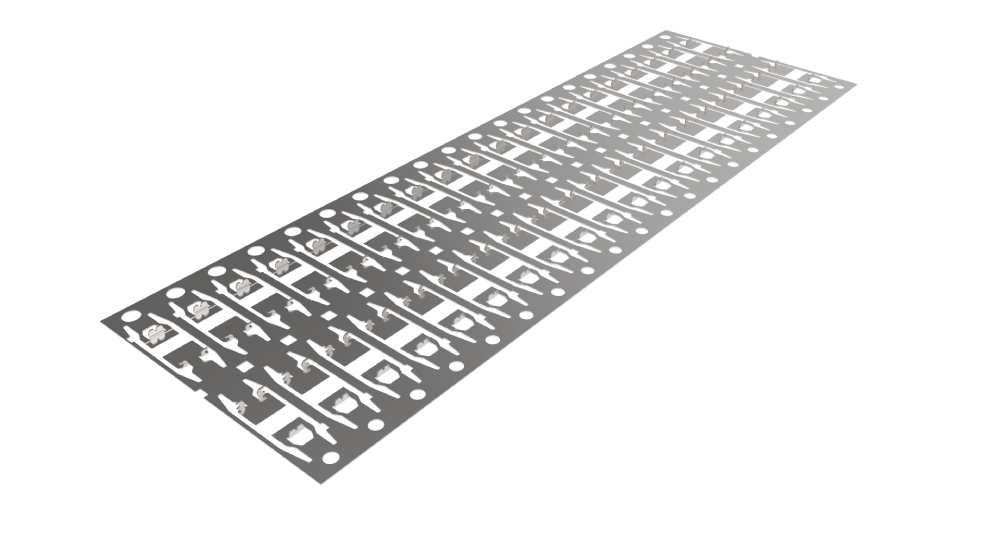

Custom high volume, precision, ‘reel to reel’ lead frame to customer specific requirements.

Find out more

Custom Lead Frames


Custom Connectors

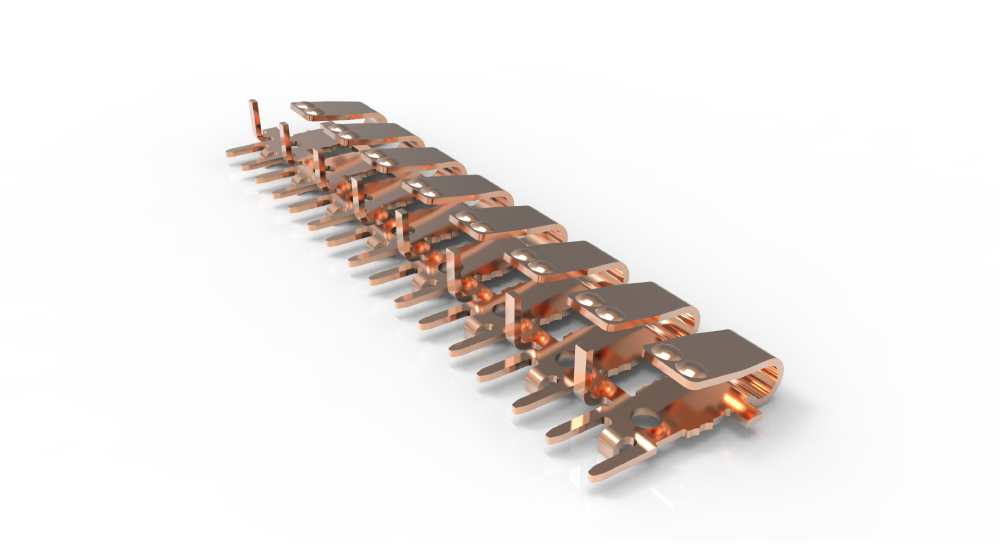

Our fully equipped factory and a range of in-house capabilities allows us to offer a varied selection of custom application connectors to suit all markets.

Find out more

Custom Connectors
