Reel-to-Reel Stamping: Processes, Benefits, and Applications

With over 85% of our production rooted in this high-speed, high-volume process, it forms the foundation of our precision component offering – and is where most customers have come to rely on us the most. Trusted by global clients in electronics, telecoms, automotive, aerospace and beyond, our reel-to-reel capabilities are designed to be accurate and repeatable at a microscopic scale.

If you’re considering reel-to-reel stamping for your components, this guide will give you a head start to understand the process, as well as the benefits it could bring. Together, we’ll walk through the process of how reel-to-reel stamping works, why it matters, and what makes Batten & Allen’s process so valuable to engineers and buyers around the world.

What Is Reel-to-Reel Stamping?

Reel-to-reel stamping is a continuous manufacturing process that feeds a coiled metal strip through a high-speed press fitted with progressive tooling.

Each station performs a different operation – cutting, bending, forming – until complete components emerge, still attached to the carrier strip. These are then rewound onto another reel for safe handling, plating or final cropping.

The progressive setup of the die allows for multiple complex operations to be carried out in one seamless pass, making the process extremely efficient and repeatable – even for extremely large batch sizes. The carrier strip maintains component alignment throughout, which is key to maintaining part integrity, as well as enabling downstream processes such as selective electroplating or automated assembly.

The process is ideal for producing components at scale and delivers exceptional throughput, all while maintaining tight tolerances across millions of identical parts. Furthermore, it reduces material waste and cuts labour requirements by automating what would otherwise be a multi-step, manual process.

At Batten & Allen, precision in the reel-to-reel stamping process is our workaday standard. We pride ourselves in creating smarter processes that go the extra mile, so each stage of your project can go that little bit smoother – right up to the shipment of your components.

We take everything we know about precision engineering and consider every variable that might impact performance - from strip layout to tool longevity and plating – to create the smartest engineering solution possible.

After all, every project is unique. Our experience and in-house tooling design allow us to customise each stage of this process to your specific requirements, so no opportunity for value or quality is missed.

From micro-precision parts for medical applications to complex lead frames for electronics, our reel-to-reel stamping delivers the repeatability, scalability and quality control required by the world’s leading OEMs.



The History and Evolution of Reel-to-Reel Stamping

First appearing in the mid-20th century as a solution for high-volume electrical component production, reel-to-reel stamping has evolved at pace, consistently in tune with the growing demands of the industries it serves. Over time, it has evolved from basic tooling systems to highly sophisticated, multi-stage progressive die-cut operations capable of producing the most intricate parts.

By investing in automation, precision control and modular tooling, Batten & Allen has kept up with the requirements of the most demanding industries. As they continue to grow and change, so do we.

From traditional high-speed methods to advanced in-line precision, the reel-to-reel process has become smarter and more controlled at every stage. Today, our customers benefit from decades of learning applied to every job.

Our Reel-to-Reel Process

What sets Batten & Allen apart is not just what we make, but how we make it.

Our reel-to-reel stamping operation is supported by 22 presses, all primed for volume production. Three of these presses currently include inline inspection capabilities, allowing us to monitor dimensional accuracy, detect damage, or measure multiple parameters in real time.

Tooling is designed, manufactured and maintained entirely in-house. This gives us complete control over quality and lead times, as well as the power to refine tool geometry to suit specific materials and component tolerances.

We’ve also invested in multi-coil winders that reduce downtime between reel changes. These automated systems allow a single operator to manage several presses simultaneously, increasing output and operational efficiency.

Furthermore, our auto-dosing lubrication systems apply just the right amount of stamping lubricant only where it's needed, resulting in cleaner parts, reduced contamination and better downstream compatibility.

Our team also integrates material selection and application-specific considerations at the design phase, helping customers choose alloys that perform best in function, formability and plating compatibility.

R2R pillar page image resize 1500x989

Benefits of Reel-to-Reel Stamping at Batten & Allen

Our reel-to-reel process gives OEMs plenty of reasons to choose us. Here are just a few…

Volume Efficiency

Our reel-to-reel setup is built for speed. We can produce millions of parts at consistent quality, making the process ideal for high-volume sectors like consumer electronics and automotive systems.

Precision at Scale

Thanks to in-house tooling and progressive die design, we achieve extremely tight tolerances across high-run volumes. This ensures repeatability and reduces the risk of failures.

Streamlined Operations

 By combining stamping, plating, and even semi-finished assembly in a single facility, we offer a highly streamlined operation. Customers benefit from fewer suppliers, simplified logistics and full traceability.

Design for Manufacture Support

We regularly advise customers on how to adapt their loose piece designs for reel-to-reel compatibility. This often leads to cost savings, easier handling, and reduced waste.



Inline Quality Control

Our inline inspection systems reduce reliance on post-process checks and give customers real-time assurance of consistent quality.

Reduced Time-to-Market

Integrated prototyping and tooling allow us to accelerate development timelines without sacrificing precision. We provide quick turnaround samples and advice, providing reassurance for new or experimental products.

Flexibility for Complex Geometries

Progressive tooling allows us to form highly intricate geometries with precision. Our tooling engineers balance punch strength, strip progression, and relief design for maximum part yield.



Applications Of Reel-To-Reel Stamping

Select from the tabs below to learn more about the unique applications of Batten & Allen products resulting from the Reel to Reel Stamping process.

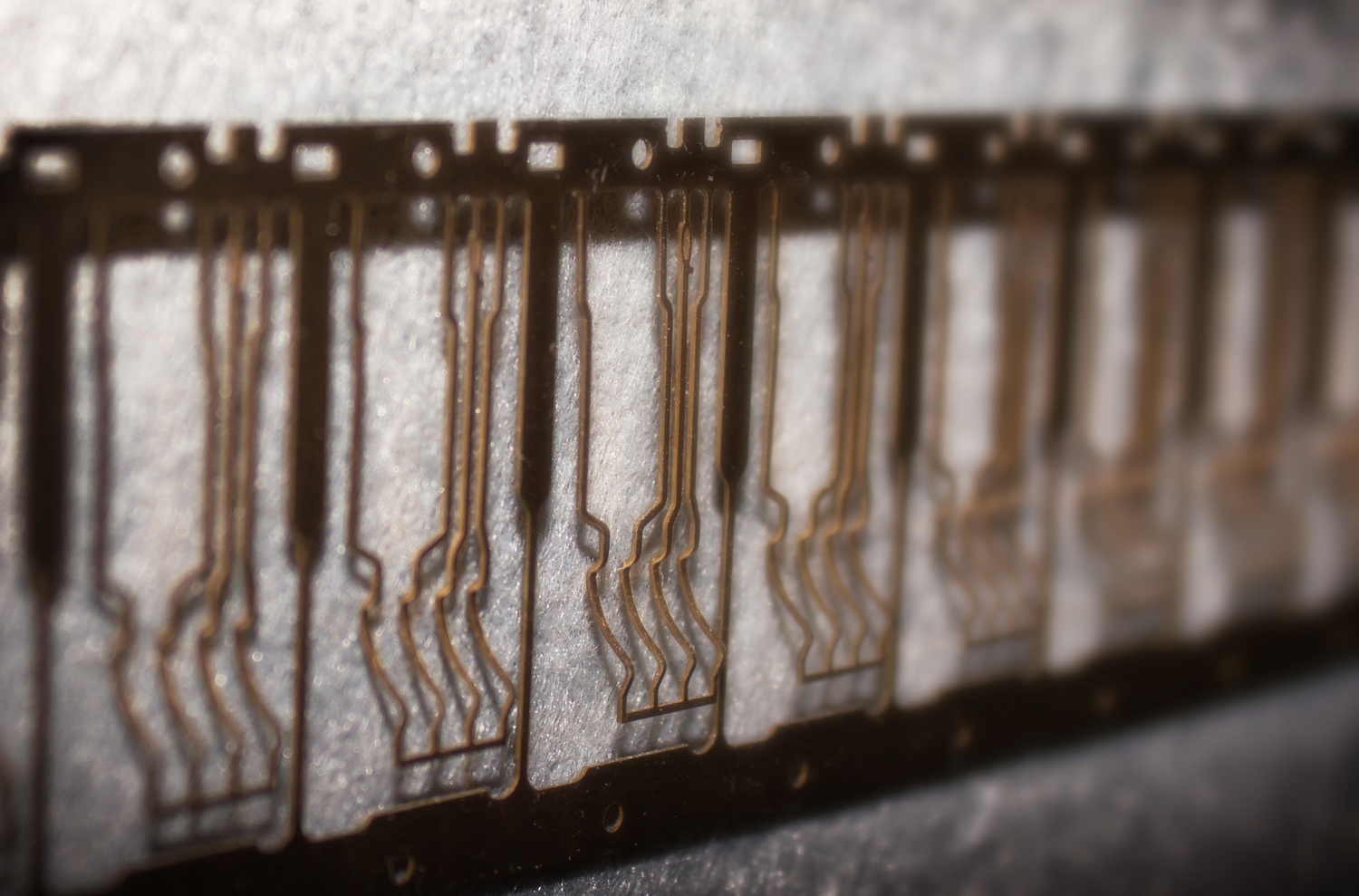

 Multi-impression, high-precision lead frames are a staple of our production output. With up to 32 impressions per tool, we deliver low cost per unit with optional pre, post, or selective plating.

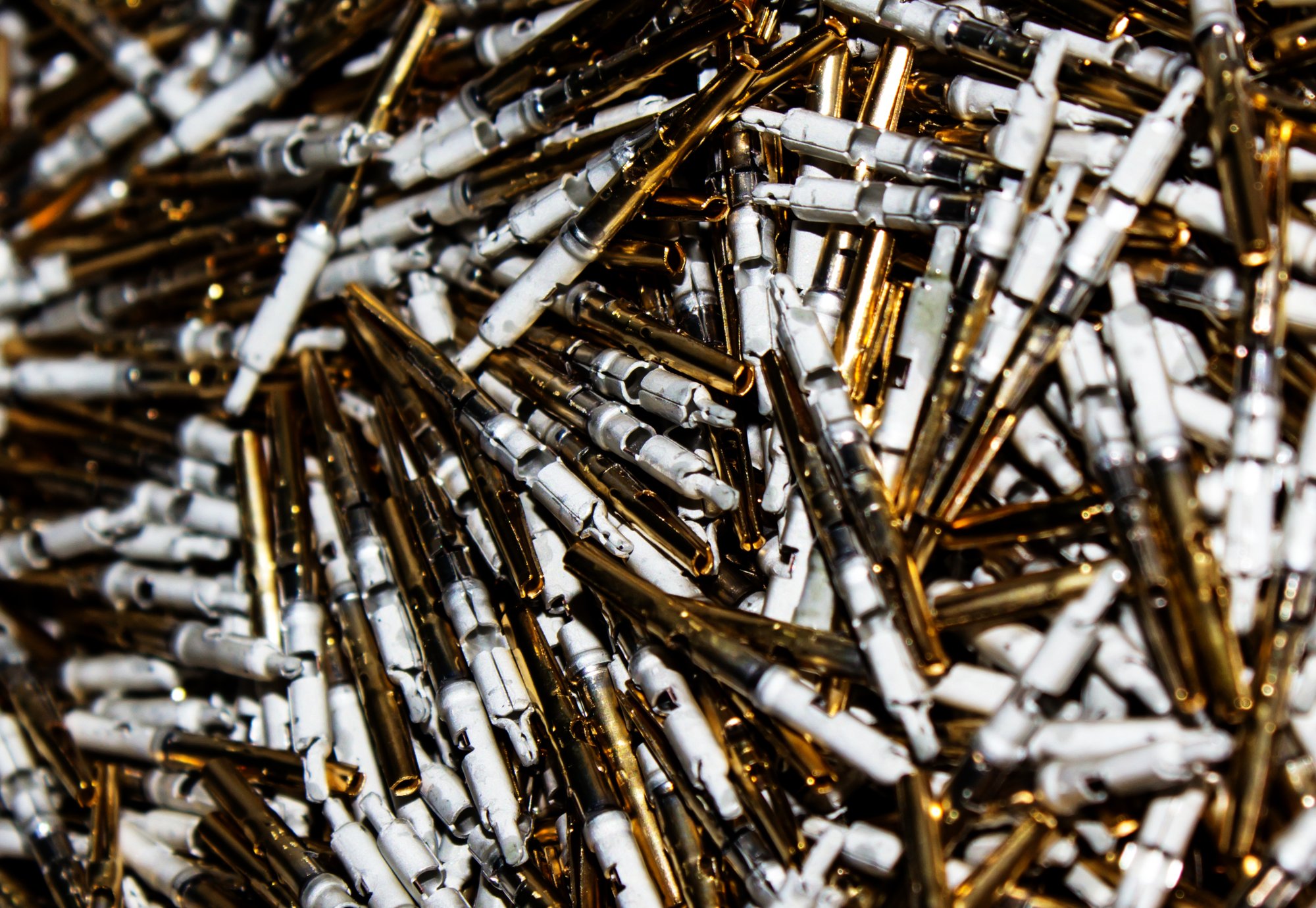

We produce stamped connectors in a range of shapes and materials, suited to consumer electronics, industrial equipment and more. Combined with in-house plating and support for assembly tooling, we deliver a complete connector solution.

Manufactured from both standard and high-performance alloys, our press-fit pin capabilities are backed by technical expertise and strong material control.

Insulation Displacement Connectors - We manufacture fine-pitch IDCs on carrier bars for automated assembly. Our capability spans multiple material grades and plating finishes.

We support highly specialised custom projects, including ultra-thin (0.010mm) to heavy-gauge (up to 1mm) materials. Our knowledge of material compatibility and stamping dynamics ensures the right fit for every application.

Some projects combine multiple finishes or mechanical features, such as formed contacts with selective precious metal plating. Our cross-functional team helps engineer hybrid solutions that meet multiple performance criteria in one efficient process.

Integrating Plating with Stamping

By combining plating with our stamping capabilities, one process can move seamlessly to the next, without delay. One of the key advantages of our setup is the ability to plate parts in-line or immediately post stamping.

We offer selective and all-over plating, including gold, silver, nickel, and tin finishes. This integration shortens turnaround times, improves plating quality by reducing surface contamination, and eliminates the need for external handling.

For precision applications such as medical or telecoms, our ability to control every variable from stamping through to plating results in significant performance improvement.

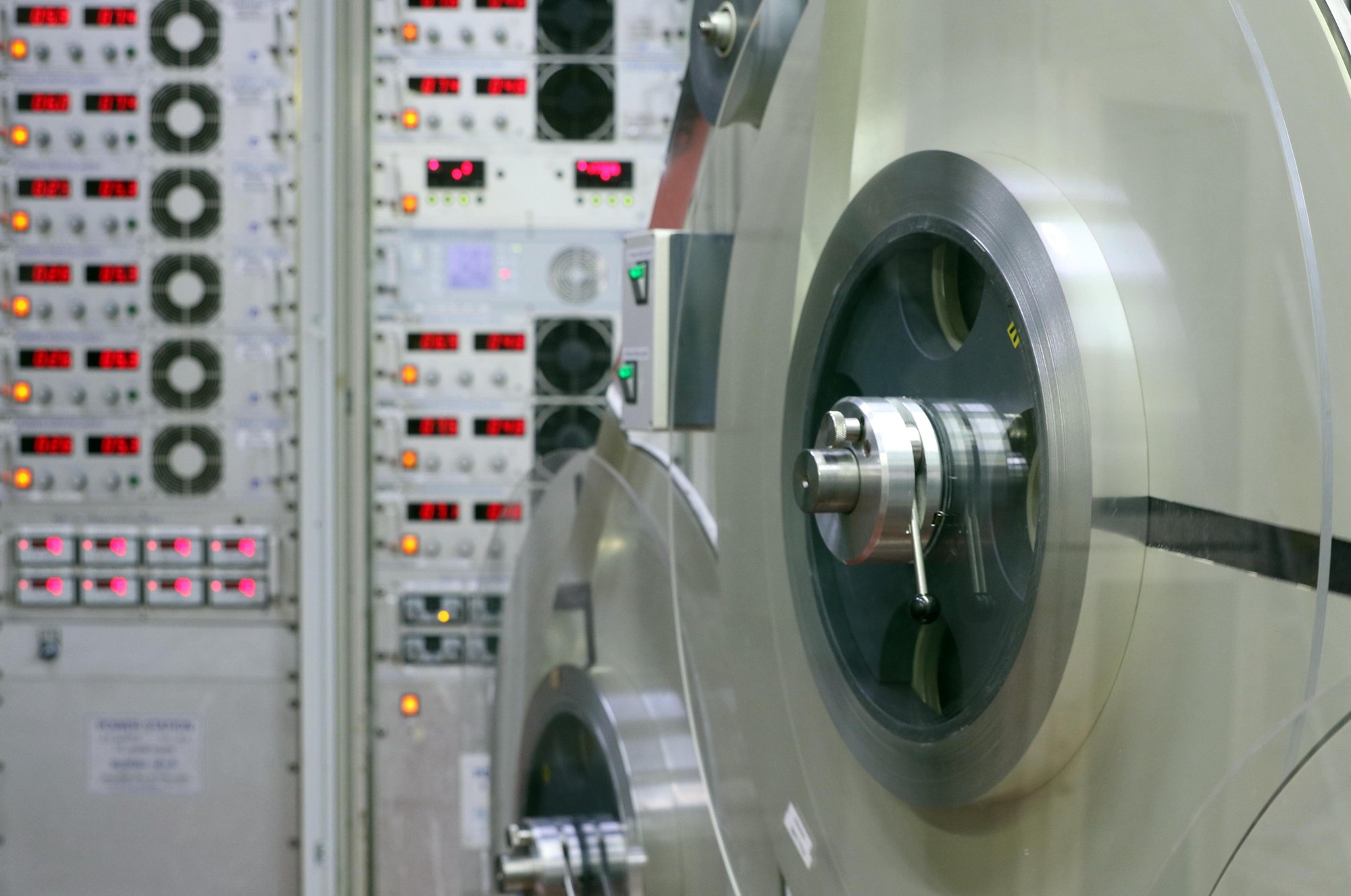

TWM_BA_201016_1101

Comparison with Loose Piece Production

All engineers have a choice of process – and the contrasting process to reel-to-reel stamping is loose piece.

In the loose piece stamping process, each part is processed individually and often requires manual transfer between operations. Reel-to-reel stamping, however, is a fully continuous method –a great advantage. This uninterrupted workflow reduces potential for handling errors, physical damage or variation in component alignment, all of which can affect performance.

What really sets reel-to-reel apart is its compatibility with automation. The continuous strip format acts as a stable guide rail, ideal for in-line plating, assembly or packaging. Unlike loose parts, which typically need robotic placement or manual sorting before the next operation, reel-based components remain uniformly spaced and perfectly aligned.

Connectors

Loose piece production can still be effective for small batch jobs, prototyping, or highly intricate components not suitable for strip-based progression. However, once volumes increase, the limitations of loose piece become apparent – particularly in terms of unit cost, throughput and downstream efficiency.

At Batten & Allen, we frequently support customers transitioning from loose piece to reel-to-reel formats. So, if you already produce loose piece parts and are thinking of upgrading to a more efficient method, we can help.

Our engineers assess existing designs, recommend strip layouts and guide minor redesigns that enable reel-based production. This often results in cost savings, better material utilisation and fewer quality concerns.

In practice, this means fewer bottlenecks and faster throughput. For customers operating in fast-moving sectors like automotive or aerospace, this manufacturing agility can provide a hugely competitive edge.

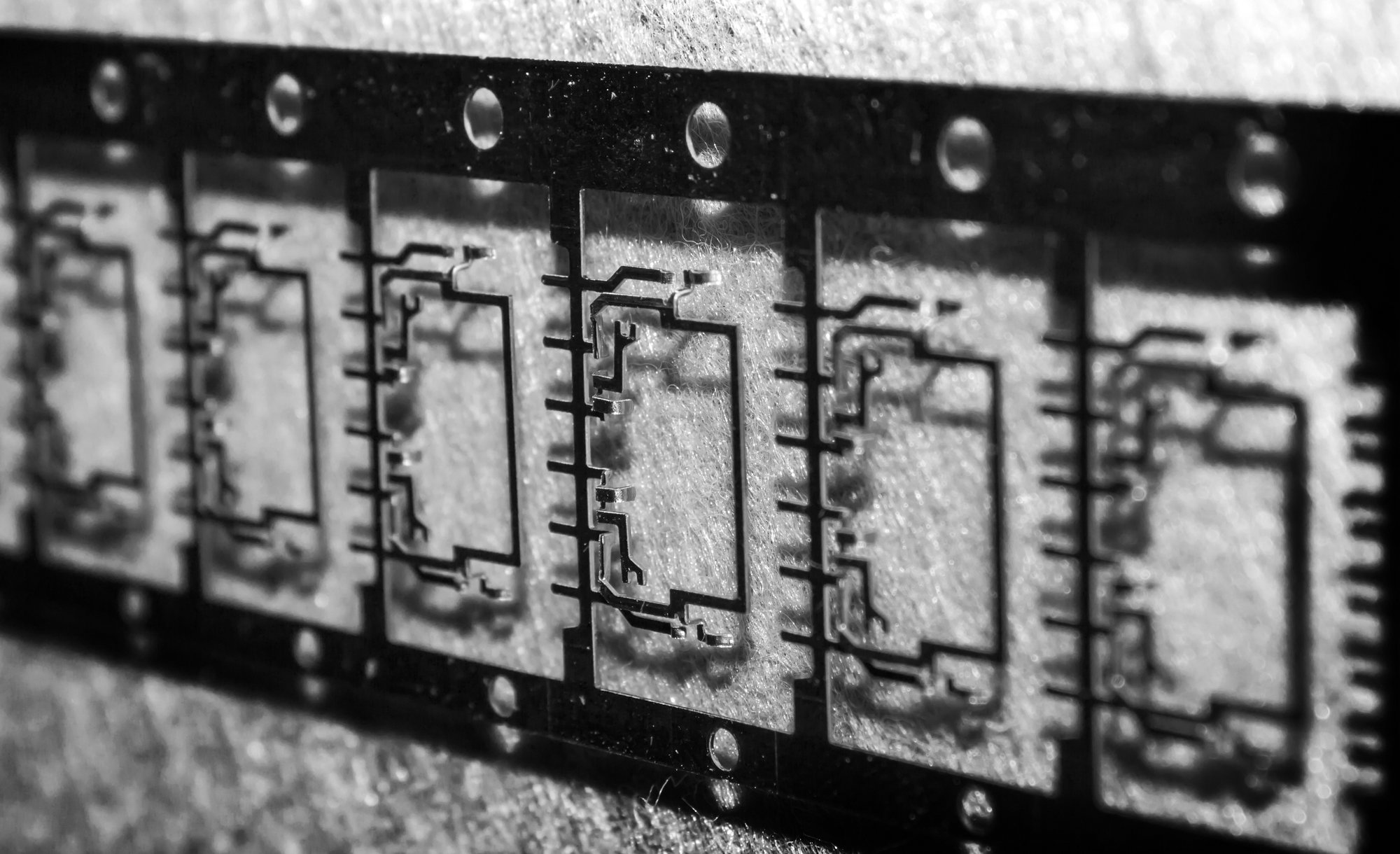

Reel to Reel Stamping or Components

Download Our White Paper

A Complete Guide to Project Estimation

wp-cta

Download Now

How Batten & Allen Overcomes Common Reel-to-Reel Challenges

Few engineering projects are without challenges, but at Batten & Allen, we pride ourselves on being experienced, agile and well-equipped problem-solvers.

Maintaining dimensional stability

across millions of parts presents the constant opportunity for error. Strip alignment, for instance, must be flawless to ensure each operation lines up precisely with the tool stations. Even minor lateral drift can introduce tolerance issues or cause tool damage.

Tool wear

is another issue – particularly when working with hardened or abrasive materials. Dulling or deformation of punch edges can lead to burrs or dimensional inconsistencies if left unchecked. Thermal expansion, meanwhile, can subtly alter material behaviour during extended production runs, especially when combined with high-speed tooling and varying lubrication levels.

At Batten & Allen, our experienced in-house engineers are equipped to monitor and respond to all these challenges in real time. Using inline optical inspection systems, we’re able to capture critical dimensions, identify deformation and verify tolerances mid-run. This enables instant feedback and process correction - without halting production.

Tool life

is extended through predictive maintenance and modular tooling strategies. Rather than replacing entire dies, we can change specific components as wear is detected, keeping downtime to a minimum and ensuring each toolset performs optimally for as long as possible.

Strip carriers

are designed with pilot holes to maintain precise registration during stamping and plating, reducing the chance of misalignment. Meanwhile, automated lubrication ensures consistent, location-specific application, decreasing part contamination and reducing the need for post-processing.

All stages come together to create a stamping process that is truly robust – even at the highest volume. Batten & Allen’s preventative ethos ensures the risks typically associated with reel-to-reel production are identified and addressed long before they reach your final components.

Environmental Impact of Reel-to-Reel Stamping

Most OEMs will have ESG on their minds when they approach a new supplier. It’s important to you and us.

Sustainability is increasingly important in modern manufacturing, and reel-to-reel stamping supports this with its inherently efficient use of materials. By forming parts directly from coil, material waste is significantly reduced. Batten & Allen enhances strip layouts to ensure the highest possible yield from each coil, reducing wastage and making the most of the usable surface area. This not only supports environmental goals but also reduces raw material costs.

Our facility uses automatic lubrication systems that apply oil precisely and only where required, lowering total lubricant use while ensuring consistent performance. These closed-loop systems also minimise fluid runoff, reducing contamination risks and making the recycling of both lubricants and scrap materials more efficient.

We’ve also taken significant steps to streamline our supply chain. By combining reel-to-reel stamping with in-house plating, etching and assembly services, we eliminate the need for multiple shipments between different suppliers. This vertical integration significantly reduces carbon emissions associated with transport, packaging and reprocessing.

In addition to this ‘big picture’ thinking, our tooling and component design teams collaborate closely with customers during the early stages of development to consider environmental impact alongside performance. This can include choosing lower-impact materials, enabling easier recycling at the product’s end-of-life stage, or designing components that use less metal without compromising on function.

Batten & Allen also follows strict compliance with environmental legislation and continuously invests in greener technologies across our production site. Energy-efficient equipment, responsible waste handling and a company-wide focus on continuous improvement form the backbone of our sustainability ethos. For customers seeking reliable manufacturing with a smaller carbon footprint, our reel-to-reel approach offers a proven solution that aligns innovation with responsibility.

Tooling Strategy and Maintenance at Batten & Allen

Tooling is at the core of precision – which is precisely why we choose to keep it in-house.

At Batten & Allen, all stamping tools are designed, developed and maintained all under one roof, by our specialist team of engineers and toolmakers. This end-to-end control allows us to optimise every element of tool performance, from initial CAD design to final assembly. Furthermore, any maintenance can be performed on-site too – significantly reducing potential downtime.

By following a modular tooling approach, wear-prone inserts and forming elements can be swapped quickly without disassembling the entire tool. This flexibility allows us to minimise the downtime of our presses during maintenance, while also enabling rapid configuration changes should part designs change.

Each toolset is maintained according to a preventative maintenance schedule, supported by live performance data from our stamping presses. This data-driven strategy tracks key metrics such as stroke count, alignment precision and output consistency – allowing us to intervene before wear becomes a problem.

Our in-house toolroom is equipped with wire erosion and CNC machining capability, giving us full autonomy over repairs, replacements and reworks. If a change is needed – whether due to tool wear or a customer revision – we can respond immediately without having to rely on third parties. Furthermore, we leverage laser marking to assist with tool part traceability.

Ultimately, our tooling strategy combines proactive maintenance with modular design, to create a system that’s responsive and perfectly designed for high-performance manufacturing. It’s how we protect your component quality, maintain delivery schedules, and reduce total cost of ownership for every stamped part that rolls off our production line.

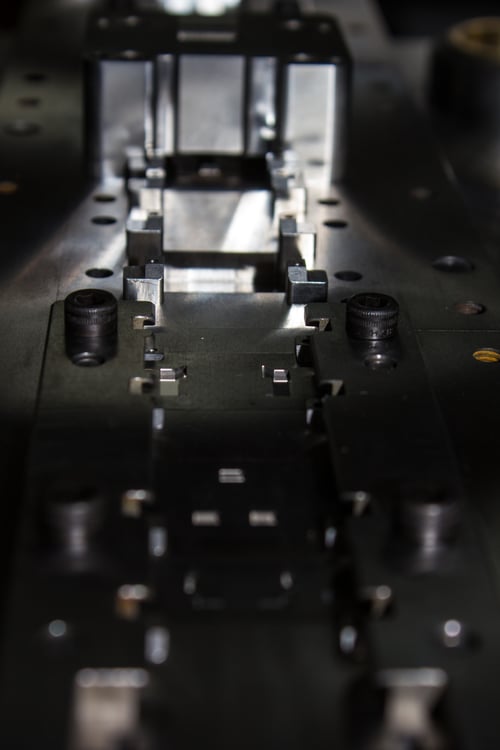

Tooling Picture

Cost Considerations and ROI for High-Volume Projects

We know quality matters to every single one of our customers – it’s one of the many reasons they choose us. However, there’s no denying that cost is important, too.

The initial investment in reel-to-reel stamping can appear significant due to the complexity of the progressive tooling, precision-engineered strip layouts and upfront process engineering. However, this investment is quickly offset by the downstream advantages of scale.

With lower per-unit costs, reduced waste and exceptional quality control, reel-to-reel stamping becomes more cost-effective with every production run. Once the tooling is in place, components can be manufactured in vast quantities with minimal human intervention – drastically reducing labour overheads and the margin for error.





Batten & Allen enhances this efficiency through its fully integrated workflow. Our in-house design, toolmaking, stamping, plating and assembly capabilities mean shorter lead times and lower total cost of ownership. Because our teams work together under one roof, design iterations are faster, communication is clearer, and handover delays are eliminated.

Material usage is another major cost driver. With our carefully considered strip layouts, customers can benefit from higher yield per coil and reduced scrap rates. This leads to more components from the same material input and fewer offcuts.

We also reduce costs through smart plating strategies. From selective electroplating to reduce precious metal consumption to aligning plating with carrier orientation for better consistency, our approach helps customers get more for their money - without sacrificing performance.

Ultimately, the return on investment from reel-to-reel stamping is cumulative. Projects gain from faster setup, fewer stoppages, longer tool life and streamlined logistics. This is how our reel-to-reel service offers the kind of cost-efficiency that pays dividends well beyond the first order.

Future Trends in Reel-to-Reel Stamping

As discussed earlier, reel-to-reel stamping has been around for a long time – and will continue to be a cornerstone of component manufacturing for a long time to come.

Reliable, reel-to-reel stamping continues to evolve in response to customer demands and technological advances. Current trends include the increased use of AI-powered vision systems, digital twins for tool simulation, and sustainability-led design for material efficiency.

Batten & Allen remains at the leading edge of reel-to-reel stamping’s fast pace of change. Our investment roadmap includes further automation, inline metrology enhancements and new tooling platforms for even faster tool changeover and development cycles. As markets move towards more compact, multifunctional devices, we’re confident our reel-to-reel expertise will play an even greater role in enabling reliable, cost-effective components.

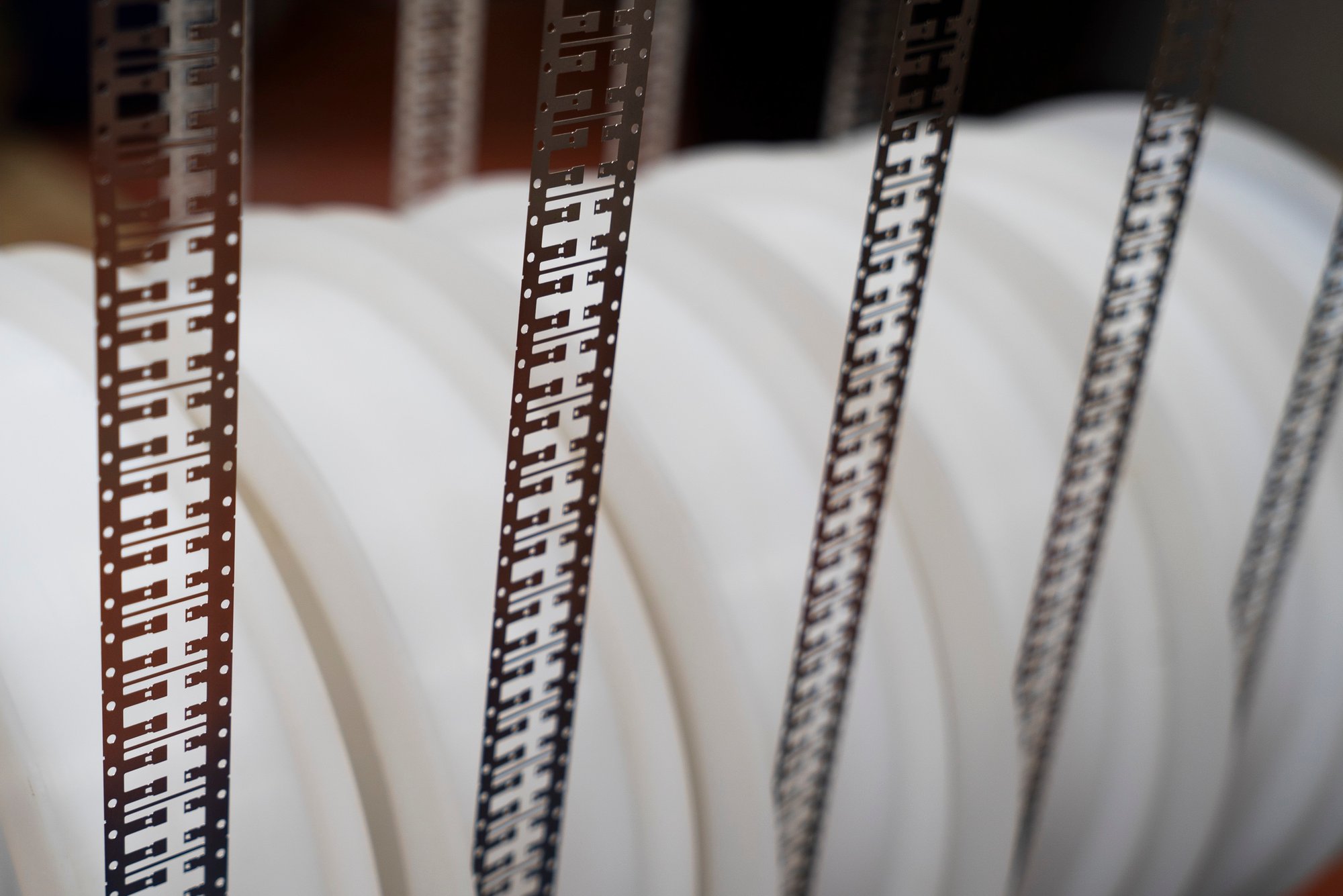

BAJun24Manu (72)-1
